VIRTEK LASERQC

Quality Inspection & Measurement of Sheet Metal Parts

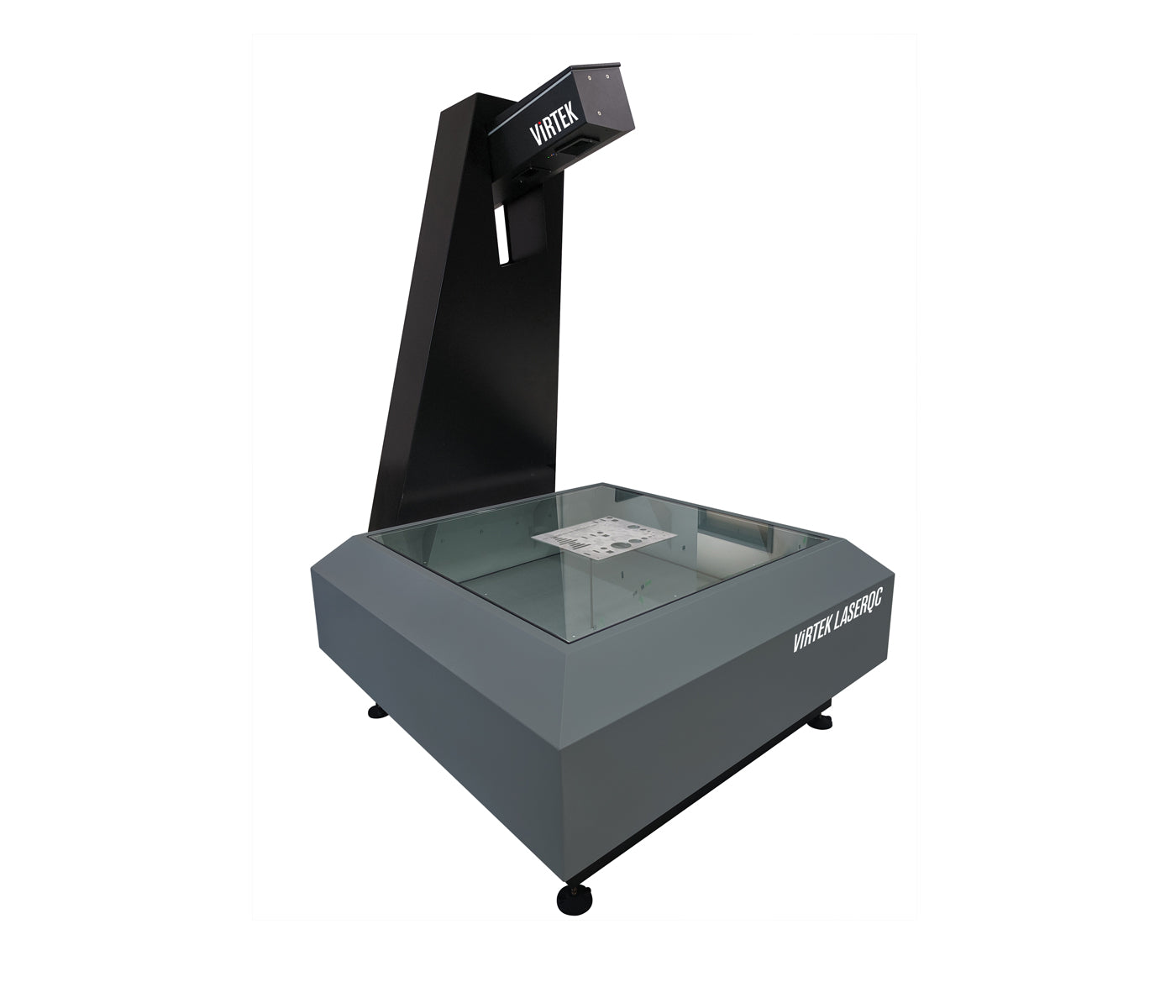

NEW! Virtek LaserQC® with Vision Quality System is a rapid inspection system that employs lasers to measure the accuracy of two-dimensional within 0.05mm (0.002 inches and three-dimensional parts to tolerances within 0.25mm (0.010 inches), respectively.

 New Release: Virtek IRIS 3D

A rapid inspection system for the sheet metal and gasket fabrication industry

 New Release: Virtek LaserQC

Identify quality issues quickly

Designed for the manufacturing environment, Virtek LaserQC verifies system calibration before each scan to ensure repeatable accuracy. By pinpointing errors immediately, you reduce scrap and rework and improve profitability.

Take quality to a new level

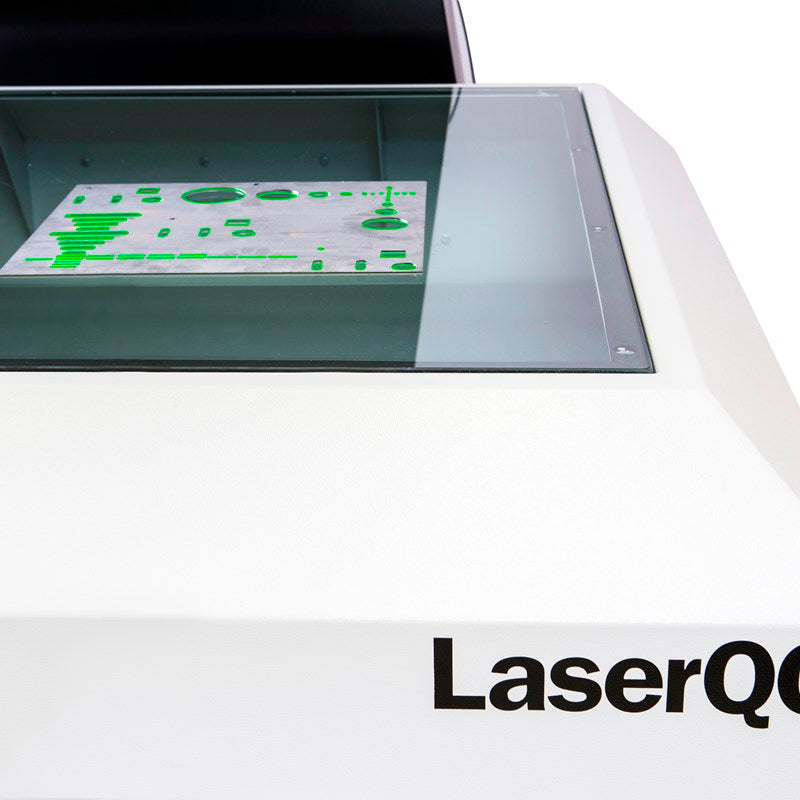

Virtek LaserQC captures more than 500 data points per second and is accurate to within 0.05mm (0.002 inches). In addition, quality control reports instill customer confidence.

Get to work right away

Virtek LaserQC is designed for easy set up so it can be operational in only a few hours. The intuitive user interface allows new operators to quickly become fully proficient.

Video: Overview of LaserQC

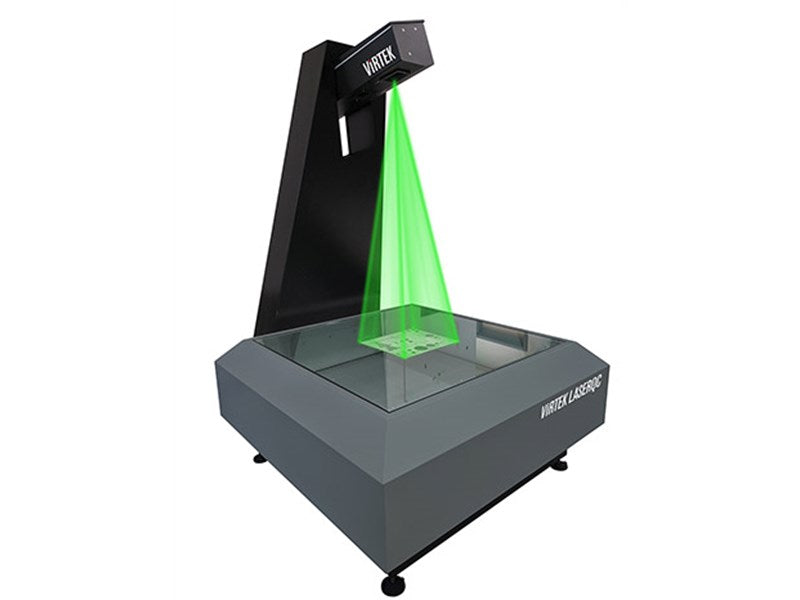

Virtek® LaserQC® is a rapid inspection system that employs lasers to measure the accuracy of two-dimensional parts to tolerances within 0.05mm (0.002 inches).

Explore our Modules

Contact us and learn more about how these modules can compliment your software package.
Software

Software

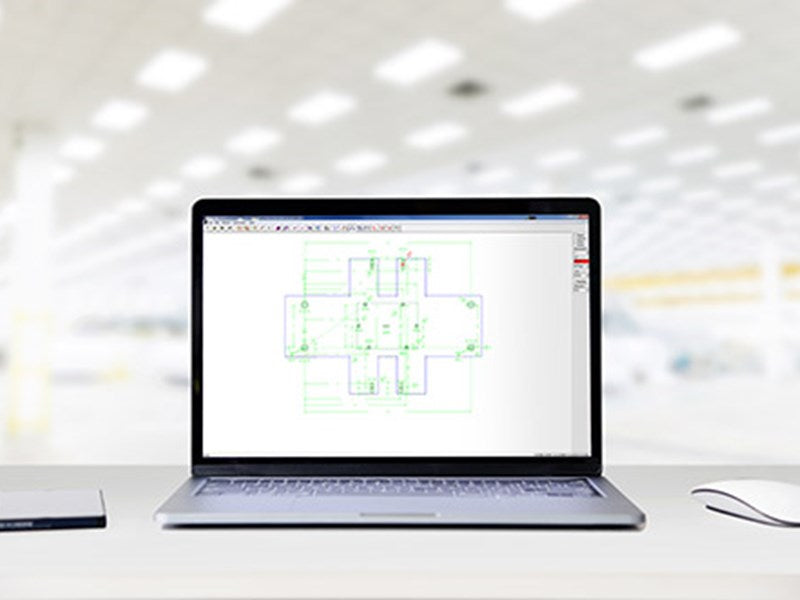

Easy to use, one-click software program to instantly inspect and measure parts.

System

Reliable and Accurate, Non-Contact inspection system that quickly and automatically performs inspections in seconds.
Service

Service

Our global service organization helps ensure that your Virtek systems are always optimized for maximum performance.

Virtek LaserQC Sheet Metal RFQ

Our team of experts will be happy to assist you.

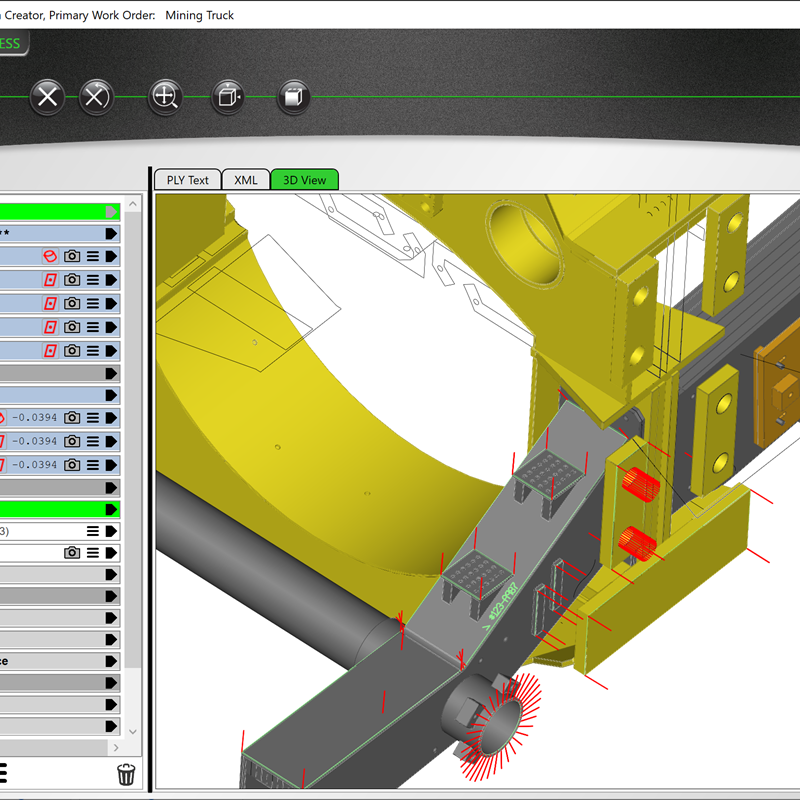

Virtek PDC
Software that designs, plans, and projects

Virtek PDC

Plataine Partnership

Real-Time Visibility & Improved Productivity

Our Products

IRIS 3DIRIS TRUSSIRIS SPS
LTGLASERQC
LASEREDGE®
Virtek Iris™ 3D with the NEW Vision Positioning System (VPS) significantly advances laser-guided assembly with innovative “FlashAlign” functionality and superior laser-line visibility. Initial alignment is 20X faster and re-alignments are reduced from minutes to seconds – save time, increase workflow all while retaining quality and accuracy.


Virtek IRIS Truss
The Virtek® IRIS Truss system projects a laser template of the truss to be built onto the work surface, highlighting the position and shape of all truss joints and connector plates. This eliminates the need for measuring, squaring and stringing.



Virtek Iris™ Spatial Positioning System (SPS) locates objects in 3D space and quickly locks onto CAD-specified assembly positions without the need for costly tooling or optical targets. The Iris system is compact and easy-to-use for improved productivity, quality and safety on the shop floor.


Virtek LTG
The Virtek Laser Template Generator™ (LTG) system projects a template that shows operators the exact location of all important features in each component or assembly. There’s no need to refer to blueprints or the use of a measuring tape, so even the most complicated designs can be built in minutes.
Virtek® LaserQC® is a rapid inspection system that employs lasers to measure the accuracy of two-dimensional parts to tolerances within 0.05mm (0.002 inches).


Industries:  Sheet Metal Gaskets
Virtek LaserEdge® software with the NEW Laser Projection System (LPS10) is an easy-to-use, three-dimensional laser templating and positioning system. It accurately projects a virtual laser template onto molds and parts to guide operators through the process of part fabrication whether it be ply layup, paint masking, assembly or component location.
