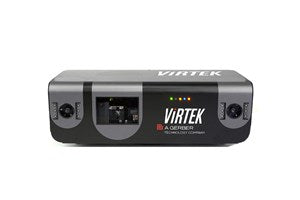

Innovative vision technology with laser projection all in one system
Accurately projects a 3D virtual laser template onto molds and parts to guide operators through the process of part fabrication whether it be ply layup, paint masking, final assembly or component location.
Accelerate workflow and avoid production delays
Faster setup and realignments mean significant time savings and increased workflow productivity.
Minimize repair costs and downtime
Open the work order, and the system will begin projecting. Start working right away.
Increase speed and precision with reduced operator errors
Reduces ownership cost, reduces maintenance time with field-replaceable components. Avoid costly delays and eliminate operator error.
Video: Virtek PDC Product Spotlight
Visualize, generate, and edit projection data directly from a part’s CAD models in a virtual 3D environment. Modify the projection process and troubleshoot manufacturing problems with Virtek laser projectors.
“The time savings have been remarkable, our technicians in the paint booth can now layout an aircraft in four hours with two technicians when it used to take 2-3 shifts when working with Mylar templates. Also, the amount of rework has almost been eliminated."
Scott Groves, Manufacturing Engineer- Paint, Embraer Executive Jets Inc.
Software that designs, plans, and projects
Contact us and learn more about how these modules can compliment your software package.
Quickly generate project files using the most recent CAD files from STEP, IGES, CATIA® V4/V5/V6, CREO, Solidworks, Siemens NX, DXF formats to quickly generate projection files.
CATIA® is a registered trademark of Dassault Systèmes.
The Virtek® Projection Data Creator can help determine the root cause of manufacturing projection problems in minutes rather than hours.
Define and lock down the manufacturing process. Add in supporting documentation, such as queries, labels, or graphics, to reduce paperwork. Improve throughput by providing information where it’s needed the most.
